Chiyoda Corporation and Toyota jointly developing large-scale electrolysis system

Chiyoda Corporation and Toyota Motor Corporation have agreed to jointly develop a large-scale electrolysis system and construct a strategic partnership and have signed a basic agreement on cooperation. The goal is to contribute to achieving the government targets for the introduction of electrolysis equipment both in Japan and overseas as part of the basic strategy on H2 formulated by the government.

The production and mass production technologies for electrolysis cell stacks using the fuel cell technology held by Toyota and the processing plant design technologies and large-scale plant construction technologies held by Chiyoda will be brought together to develop a large-scale electrolysis system that can be competitive. This will allow adaptation to the rapidly expanding H2 production markets both inside and outside Japan.

Electrolysis equipment

Specifically, the goal is to develop an electrolysis system with high H2 production efficiency while being the world's smallest in size.

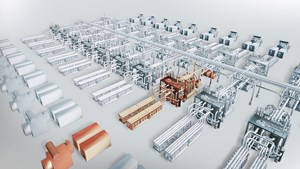

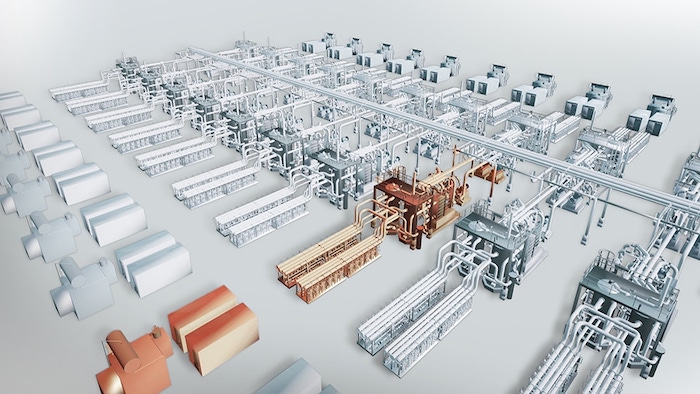

Large-scale electrolysis system

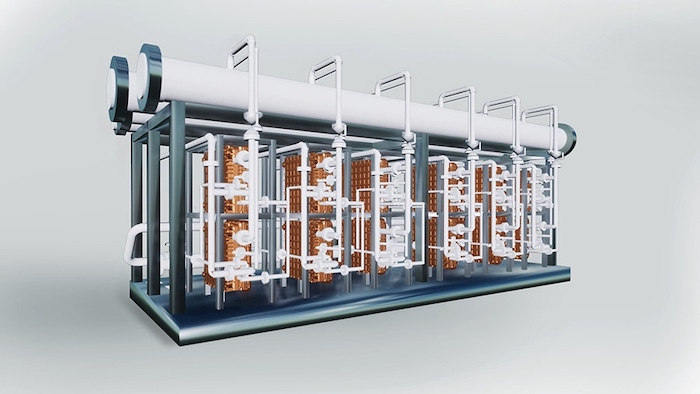

To be able to respond to the various needs of customers, such as the amount of H2 used or limitations on plant floor area, 5 MW-class equipment will be used as the basic unit (floor area: 2.5 m x 6 m, H2 production capacity: approx. 100 kg/hr) for development, and will be combined to create a standard package, allowing the construction of large-scale electrolysis systems.

The merits of this equipment include the fact that it only takes up about half the floor area of conventional equipment and offers ease of maintenance while allowing easier shipping, shortened onsite construction times, and lower civil engineering and construction costs. Toyota's particular expertise in industrial products and Chiyoda's particular expertise in plant engineering will be combined and optimized, allowing benefits such as lower costs, increased production efficiency, and more stable quality for the electrolysis systems required to produce green H2.

With the signing of this basic agreement on cooperation, the introduction of an electrolysis system in H2 park at the Toyota Honsha Plant will start in FY2025. It will be expanded in the future to the 10 MW class and used for verification and development. Any further developments will be released as they happen.
